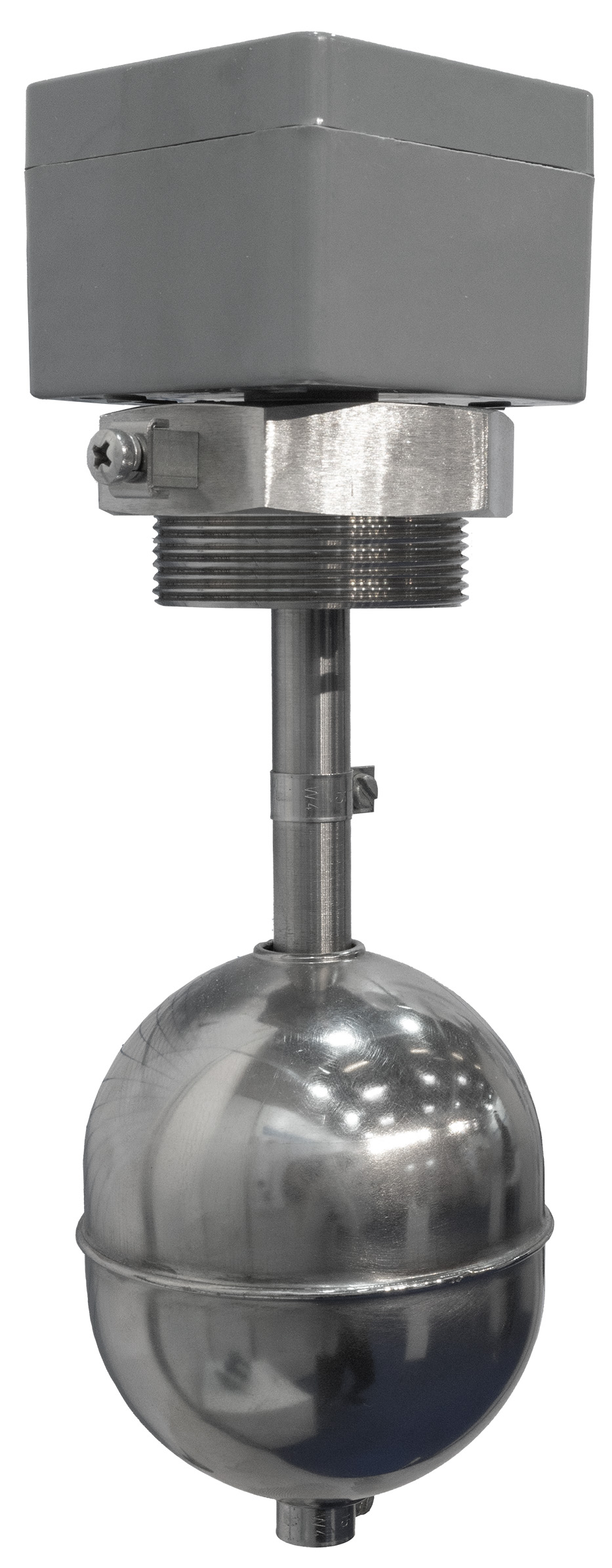

T203.F . protection anti-débordement et détecteur de fuite Sonde d'immersion magnétique / capteur de niveau WHG overfill protection

Sécurité anti-débordement pour les conteneurs

Caractéristiques

WHG Überfüllsicherung

famille de produits

mesure de niveau

classe de produits

protection anti-débordement et détecteur de fuite

convient pour

Liquide

principe de mesure

Caractéristiques particulières

with general approval for construction Z-65.11-404
Low system costs
High chemical resistance

Description

Level sensors type T-20_.F... are approved by the DIBt (German Institute for Structural Engineering) as liquid level limit switches for the overcharge protection of containers for storing water-dangerous liquids.

Données techniques

Propriétés

Classe de protection: IP 65 Dose

Longueur du tube coulissant: max. 6000 mm

Température de fonctionnement: max. 135 °C

Pression de fonctionnement: max. 20 bar

F-Contact: 1/12 kΩ

Courant de commutation: 1A, 2A

Tension de commutation: 230 V AC

Flotteur

quantity: max. 6

Type 05: Oval Edelstahl 76 mm Ø | Dichte 0,81 g/cm³

Type 06: Oval Edelstahl 90 mm Ø | Dichte 0,67 g/cm³

Minimum contact distance: Typ 05: 110 mm | Typ 06: 135 mm

Contacts de commutation et capacité de commutation

Contact de changement: max. 5x | 60 W/VA

normalement ouvert: max. 6x | 100 W/VA

Normally closed contact: max. 4x | 60 W/VA

Autres informations sur les produits

The floater switches the reed contact mounted in the guide tube when the liquid level rises. The change in resistance in the sensor circuit resulting from the switching operation is evaluated and the output relay triggered.
Parts of the level sensor which get into contact with the media are completely made of PE, PP, PVC, PVDF. So the level sensors T-20_.F... are perfectly suited for being used with tanks for storing highly aggressive media.

The overfill cut-out device consists of the level sensor and the measuring transducer. Our “contact protective relays” type KR-163... and KR-268..., which are also approved by the DIBt, can be used as corresponding measuring transducers (see section 10). The level sensors T-20_.F... can be connected to our “alarm indicators” type OAA-100 and OAA-300.

Easy to install
Sturdy design
Small dimensions
Interference-proof measurement
Switching point adjustable
Various options for connection (connector box / plug / cable)
For usage in category 2 (Ex zone 1) (in combination with [Ex]i contact protective relay KR-163/A/Ex)
Short-line fault / open circuit monitoring (in combination with contact protective relay KR-163... and KR-268... / alarm indicator OAA-100...)
Under the F-contact further optional switching points can be realized
Under the F-contact its also possible to integrate a continuous measurement
