Description

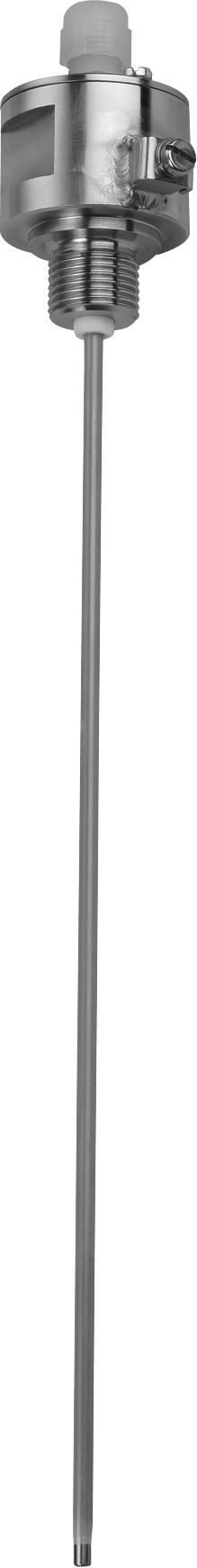

When using a threshold detection electrode with integrated safety barrier, exceeding or falling below a threshold in conductive fluids in Ex-Zone 0 (category 1) can be detected.
Technical Data
Properties
- connection thread
- G 1/2” Standard | G 3/4” | G1”
- Cable
- TPK (Standard) | SIL (Silikon) | FEP (Teflon)
- rod length
- max. 6.000 mm
- Operating pressure
- max. 40 bar
Material
- electrode body
- Edelstahl 1.4571
- Process connection
- Edelstahl 1.4571
- Coating
- PTFE
- electrode rod
- Edelstahl 1.4571
- on request
- Hastelloy C | Tantal
EE-24 application-specific configuration
EE24 - [ 1 ] - [ 2 ] - [ 3 ] - [ 4 ] - [ 5 ] - [ 6 ] - [ 7 ] - [ 8 ]
Further product information
The electronics are fitted and sealed in the connection head.
The probes head may not be mounted in an Ex-Area.
