product details CSC-20 YUGO

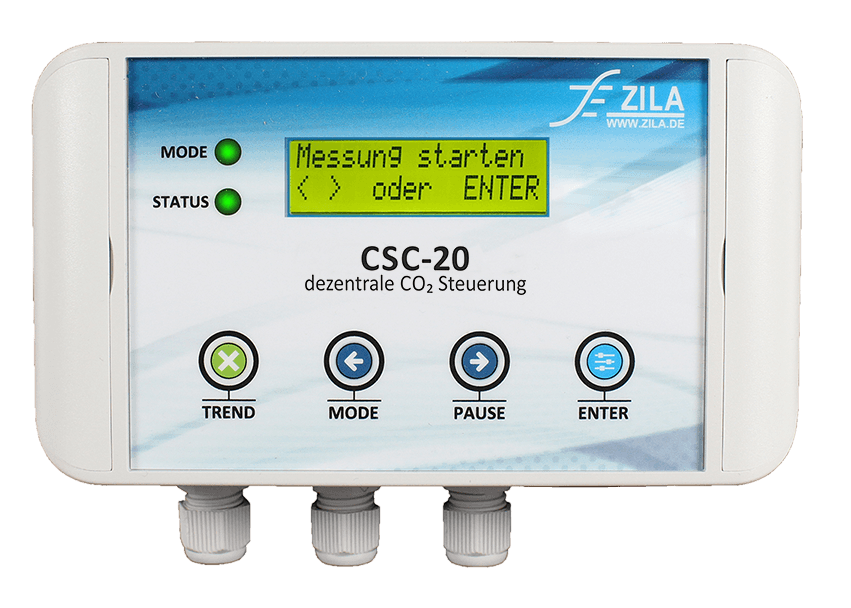

CSC-20 YUGO

Decentralised control unit, equipped with a CO2 sensor for needs-based ventilation

Features

CO2

product family

gas detection

product class

gas detector & switch

suitable for

gas

measurement principle

optical

Special characteristics

Automatic, controlled ventilation
Maintenance-free, durable CO2 sensor
Configurations for different applications and actuators

Description

Decentralised CO2 monitoring with direct control of various supply and exhaust air elements such as fans and dampers

Technical Data

Properties

Power supply: 230 V AC

measuring range (CO2): 0..10.000 ppm

Measuring accuracy CO2: ± 50ppm +3 % vom Messwert

Operating conditions: 0…50°C / 0…85 %rH

Storage conditions: -30…70°C / 0…85 %rH

Protection class: IP 31

EMV/ESD: EN 50082-1, EN 50082-2

Signal output: I²C

Further product information

The decentralised CO2 control CSC-20 YUGO comes with an integrated CO2 sensor and can activate fans for supply and exhaust air, depending on the measured CO2 concentration. The control has a display indicating the measured values and also a total of four operating keys with which the parameters can be configured very easily thanks to the intuitive menu navigation. Due to the optical measuring principle NDIR (non-dispersive infrared absorption measurement), the integrated CO2 sensor is maintenance-free and durable. With all these features, the device contributes to an automatic, controlled and needs-based ventilation of all kinds of rooms.
