Description

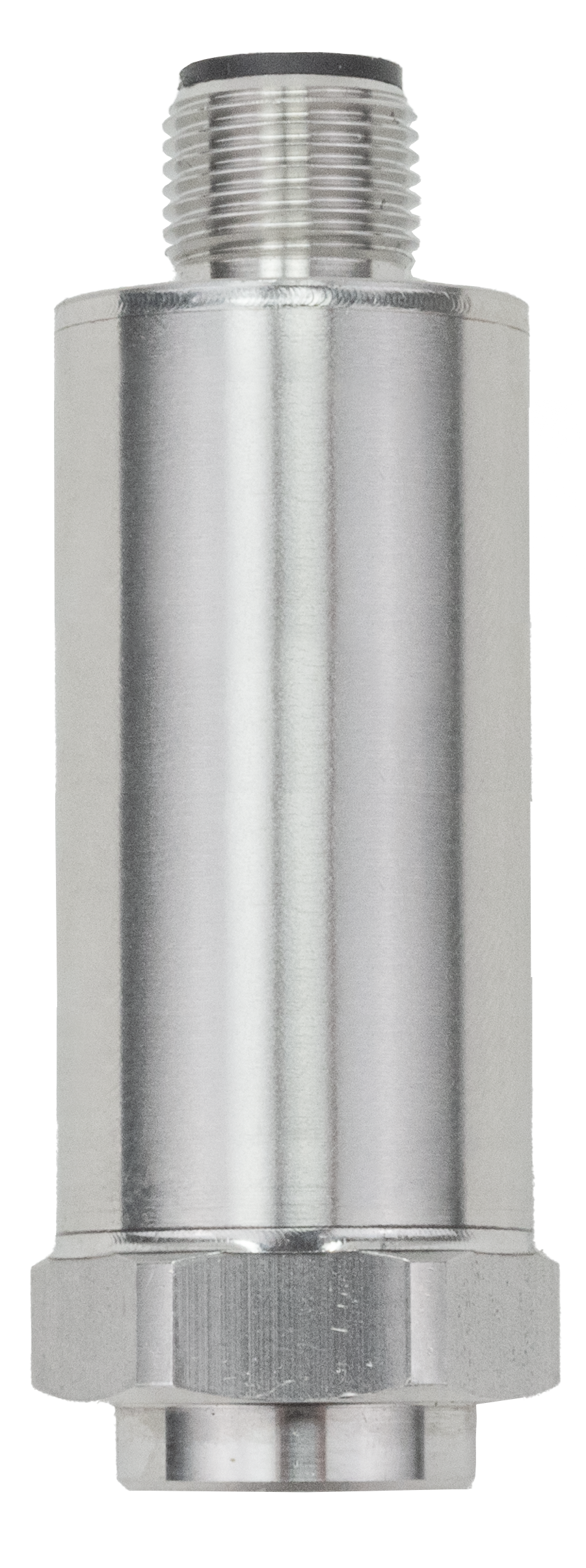

Reliable pressure measurement and optimal process monitoring thanks to the ZT series. Developed for high demands and safety-critical applications
Technical Data
Properties
- Operating voltage
- 12...32 V DC (max. 0,2 W)
- Dimensions
- Ø 22 x 59 (D x H), SW22
- Housing
- Edelstahl
- ltdata.MessbereichNenndruck
- -1…500 bar
- Overpressure
- 2 x Nenndruck
- Bursting pressure
- 4 x Nenndruck
- Protection class
- IP65
- Output signal
- ZILA-DIO
Operating conditions
- Pressure type
- Relativdruck
- Temperature of the fluid
- -40 …+125 °C
- ltdata.Medientemperatur(optional)
- -20 …+125 °C
- Ambient temperature
- -40 …+105 °C
electrical connection
- ltdata.Standard
- Binder M12 x 1
ZT-S application-specific configuration
ZT-S - [ 1 ] - [ 2 ] - [ 3 ] - [ 4 ]
Further product information
- Safe measurement of pressures up to 500 bar
- Versatile application possibilities due to flexible design of the connections
- Industrial and fail-safe design with integrated self-test functions
- Media compatible with all media matched to stainless steel
- Low total error due to electronic calibration
- Long-term tightness and stability due to monocell concept
